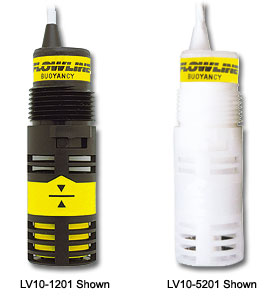

| The general purpose buoyancy level switch is a great choice for relatively clean water and chemical solutions with non-coating and/or scaling characteristics. Media examples include sulfuric and hydrobromic acids. The baffle body dampens most switch chatter caused by turbulence. The dry contact closure provides a reliable switch interface with remote devices such as a PLC, SCADA or alarm. The sensor mounts vertically inside the tank on our Smart Trak or Switch-Pak fittings. |
|
|
|
Baffle body reduces switch chatter caused by process turbulence |
|
PP or PVDF sensor and cable rated NEMA 6 or IP68 |
|
50 VA dry contact with selectable NO or NC state via float orientation |
|
Compatable with Flowline controller, alarm and fitting accessories |
|
| Tech Tip |
| For convenient installation, package the vertical float with our Smart Track or Switch-Pak fittings. Its level installation made simple. |
|
|
Specifications
|
|
Orientation:
|
± 20° vertical
|
|
Repeatability:
|
±1 mm in water
|
|
Contact type:
|
(1) SPDT reed
|
|
Contact rating:
|
50 VA
|
|
Process temp:
|
F: -40° to 176°
C: -40° to 80°
|
|
Pressure:
|
25 psi (2 bar)
|
|
Cable length:
|
10' (3m)
|
|
Sensor rating:
|
NEMA 6 (IP68)
|
|
Process mount:
|
3/4" NPT (3/4" Rp)
|
|

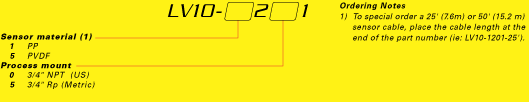

Sensor material:
|
PP / PVDF
|
|
Classification:
|
General purpose
|
|
|
|
|
|
