Ball Valves+GF+ Signet

Ball Valve Type 546

Ball Valve Type 546



Data Sheet

User's Manual

The ball valve type 546 is yet another innovative product developed by GF Piping Systems; it comprises extensive experience and the latest technology.

A broad spectrum of product features provides you with quality, flexibility, reliability, in addition to modularity. The ball valve type 546, successor of the ball valve type 346, is the fully developed result of 40 years GF Piping Systems experience in plastic pipeline Know-How.

The ball valve type 546 is part of a modular system that satisfies your requirements on operational reliability as well as those on eco-friendliness and cost-effectiveness.

Fields of Application:

  • chemical process industry
  • life science
  • microelectronics
  • measurement and control
  • water treatment
  • ship building
  • food & beverage

Advantages:

  • for the manual- and the actuated valve with many options - from electrical position feedack, the lockable handle to the pipe clip
  • biggest range of products (via the configurator several executions can be generated)
  • ergonomic handle ( optional lockable ) with integrated tool for dismounting the union bushing
  • integrated fixation system with mounted threaded inserts



Ball Valve Type 543

Ball Valve Type 543



Data Sheet

User's Manual

The valve for all mixing- and diverting processes in your application. The ball valve type 543 is available as a horizontal and vertical version. The horizontal valve can be ordered with L- or T-Port ball. The vertical valve comes in the L-Port configuration or with a optional diverter ball.



Fields of Application:

  • CPI
  • life science
  • microelectronics
  • measurement and control
  • water treatment
  • ship building

Advantages:

  • from the manual valve to the actuated ball valve with several options
  • indicator for the position of the ball on the handle
  • integrated fixing system with mounting inserts (horizontal)
  • handle with integrated tool for removing of union bushings
  • the horizontal version includes three ball seals
  • 90° end stop attached for all horizontal valves
  • safety build-up due to indexed ball, stem and handle

Ball Valve Type 375

Ball Valve Type 375



Data Sheet

User's Manual

Complement valve to the ball valve type 546 for non critical applications. The ball valve type 375 offers you a basic PVC-U true union ball valve.








Fields of Application:

  • non-critical chemical applications
  • water treatment projects
  • swimming pools

Advantages:

  • available from d16DN10 up to d110DN100
  • handle with integrated tool for removing / adjusting the union bushing

Ball Valve Type 323

Ball Valve Type 323



User's Manual

The ball valve type 323 (metering valve) is the perfect valve for the exact dosing of media in your applications. The special bore profile of the ball as well as the 180° fine scale enable an accurate adjustment of the dosing process.







Fields of Application:

  • wherever exact dosing of media in your applications is required

Advantages:

  • 180° scale for fine adjustment
  • special bore profile
  • union type ends for easy installation and removal
  • handle with integrated tool for removing / adjusting union bushing



Ball Valve Type 322

Ball Valve Type 322


The ball valve type 322 is the perfect valve for the use in the laboratory. It is characterized by his compact design and the linked space saving installation.









Fields of Application:

  • all laboratory or similar applications

Advantages:

  • compact design
  • union nut enables a one sided removal and an easy access to the internal components
  • handle design indicates the position of the ball

Ball Valve Type 353 - 355

Ball Valve Type 353 - 355



The Coloro is characterized by a Monobloc construction and is ideally suited for many basic applications with water. The available versions are as follows:

Type 353 compact valve
Type 354 single union ball valve
Type 355 double union ball valve







Fields of Application:

  • water distribution
  • swimmimg pools
  • agriculture
  • irrigation
  • fish farming

Advantages:

  • space saving installation due to the compact design
  • coloured handles for a clear differentiation of processes in your Piping System
  • the right sealing materials for water applications

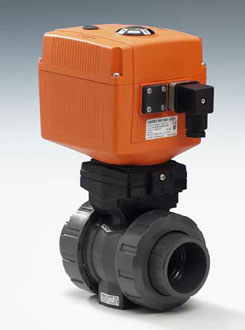

Electrically Actuated Ball Valve Type 107

Electrically Actuated Ball Valve Type 107



User's Manual

Type 107 is based on the Ball Valve Type 546 (d16DN10 to d63DN50) with the electric actuator EA11. The Type 107 is designed for automated standard applications with no special demands.



















Fields of Application:

  • Chemical Process Industry
  • Life Science
  • Microelectronics
  • Measurement and Control
  • Water Treatment
  • Ship Building
  • Food & Beverage

Advantages:

  • electric feedback for ball position integrated into multifunctional module or actuator
  • heating element
  • fail safe return unit with battery
  • integrated emergency override



Electrically Actuated Ball Valve Type 130 - 135

Electrically Actuated Ball Valve Type 130-135



User's Manual

Ball valves Type 130, 131, 132, 133, 134 and 135 are based on the ball valve type 546 (d16DN10 to d110DN100) and the electric actuator EA21 (DN10-DN50) or EA31 (DN65-DN100). Type range 130-135 is designed as modular upgradable ball valve for Applications, which request special process demands.



















Fields of Application:

  • Chemical Process Industry
  • Life Science
  • Microelectronics
  • Measurement and Control
  • Water Treatment
  • Ship Building
  • Food & Beverage

Advantages:

  • electrical feedback 4-20mA with additional limit switches in different executions integrated into the actuator or in the multifunctional module
  • run time control
  • engine current control
  • cycle control
  • cycle time prolonging
  • position control for 90° and 180° angle
  • integrated manual emergency override

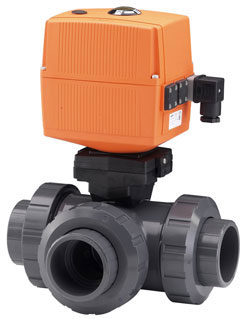

Electrically Actuated Ball Valve Type 185 - 188

Electrically Actuated Ball Valve Type 185-188



User's Manual

Ball valves Type 185 - 188 are based on ball valve Type 543 (d16DN10 to d63DN50) and electric actuator EA21. The Type range 185-188 is designed as modular upgradeable 3-Way ball valve for mixing and diverting applications which demand special process requirements.



















Fields of Application:

  • Chemical Process Industry
  • Life Science
  • Microelectronics
  • Measurement and Control
  • Water Treatment
  • Ship Building
  • Food & Beverage

Advantages:

  • Electric Feedback 4-20mA with additional limit switches with different functions in the actuator
  • cycle time control
  • engine current control
  • cycle control
  • cycle time prolonging
  • position control for 90° and 180° bends
  • integrated emergency manual override



Pneumatically Actuated Ball Valve Type 230 - 235

Pneumatically Actuated Ball Valve Type 230-235


Ball valves Type 230, 231, 232, 233, 234, 235 are based Type 546 (d16DN10 to d63DN50) and electric Actuator PA11 (DN10-DN25), PA21 (DN32-DN50), PA30-PA45 (DN65-DN100). Type range 230-235 is designed as modular adjustable ball valve for Applikations, which demand special Process requirements.



















Fields of Application:

  • Chemical Process Industry
  • Life Science
  • Microelectronics
  • Measurement and Control
  • Water Treatment
  • Ship Building
  • Food & Beverage

Advantages:

  • compact design and modular assembly
  • optional with manual override
  • electric feedback when manually actuating valve
  • fast cycle time
  • for FC/FO stroke limitation possible
  • pressure connector based on Namur standard



3-Way-Ball Valve with pneumatic actuator Type 285-288

3-Way-Ball Valve with pneumatic actuator Type 285-288


Ball valves Type 285 - 288 are based on ball valve Type 543 (d16DN10 to d63DN50) and electric actuator EA21. The Type range 285-288 is designed as modular upgradeable 3-Way ball valve for mixing and diverting applications which demand special process requirements.



















Fields of Application:

  • Chemical Process Industry
  • Life Science
  • Microelectronics
  • Measurement and Control
  • Water Treatment
  • Ship Building
  • Food & Beverage

Advantages:

  • compact design and modular assembly
  • preloaded spring packages, standard version FC, DA; FO on request
  • fast cycle time
  • for FC/FO stroke limitation possible
  • pressure connector based on Namur standard
